Pistonless containers for fluid / gas samples

Pistonless containers are designed for oil and gas samples transportation and storage.

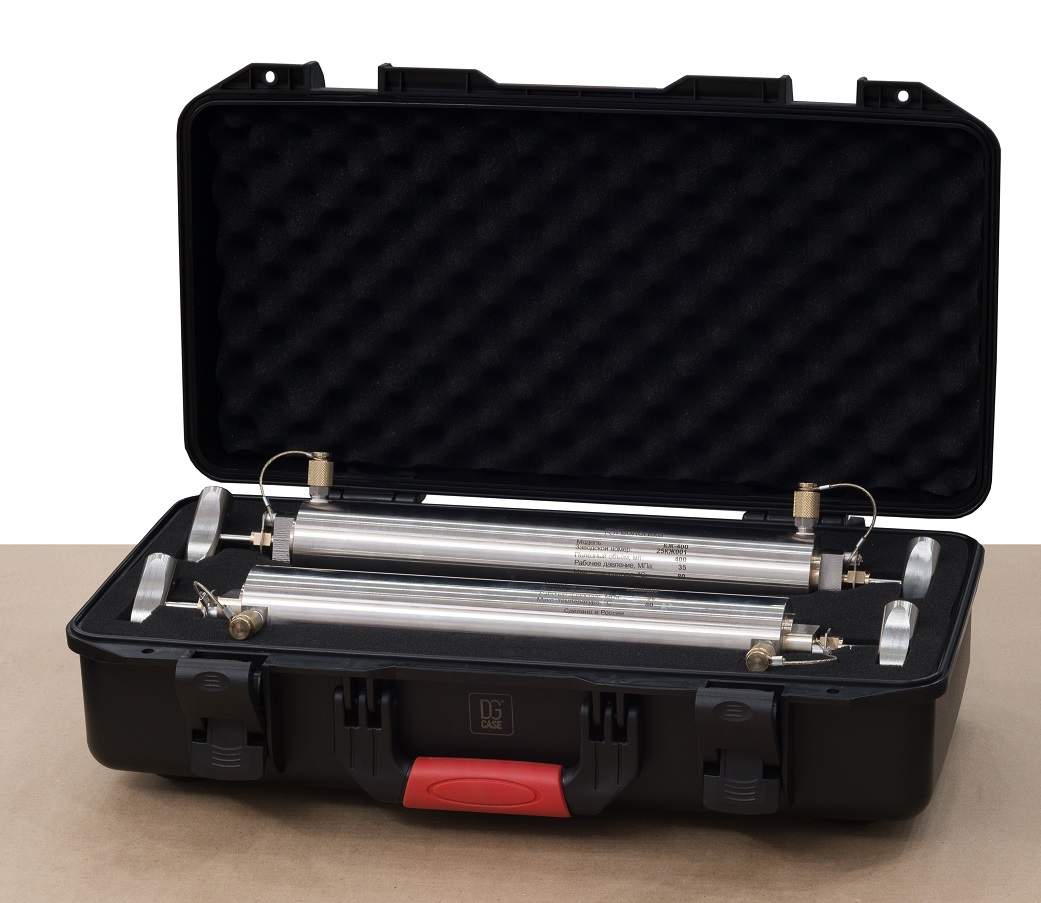

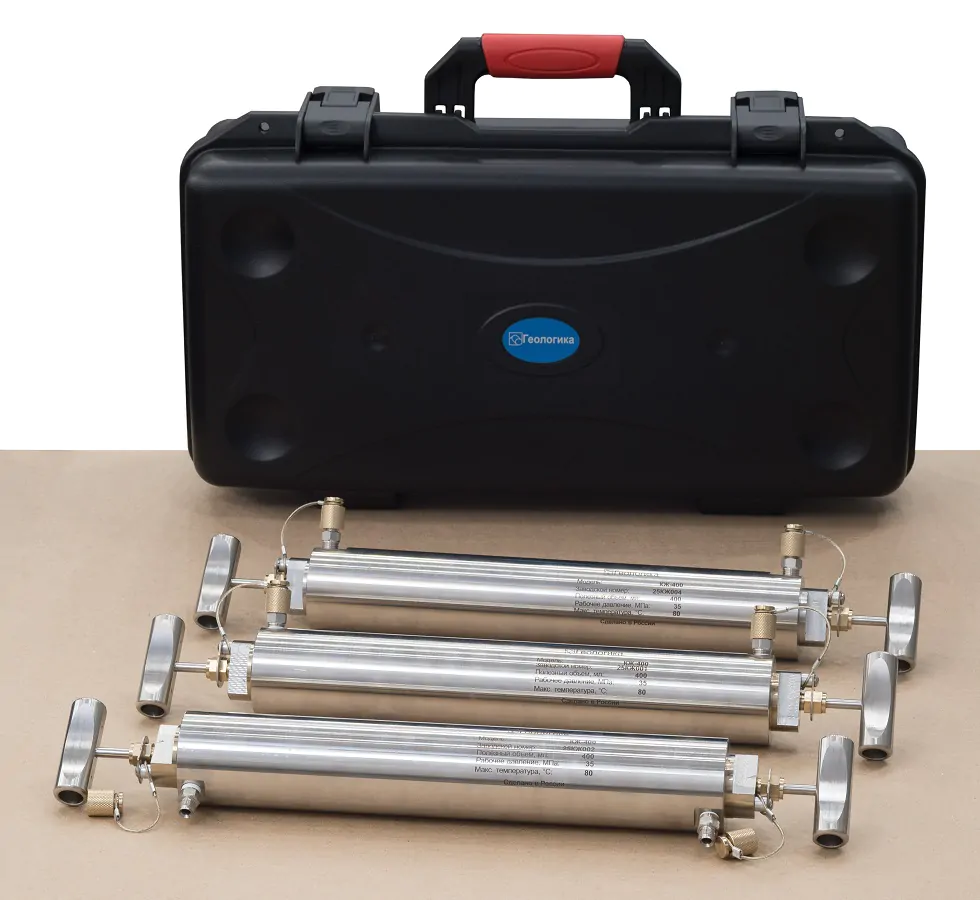

The pistonless container can be equipped with needle valves installed on both ends of the container and having protective arcs against damage during transportation. Transportation case also can be included.
Pistonless containers can be made of corrosion-resistant steel (12X18H10T or analogue) or acid-resistant nickel alloy (C-276 HASTELLOY or analogue). Containers are designed for temperatures up to 150 ° C.
Pistonless containers are provided by EAEC N RU Д-RU.АД35.В.03244 declaration of conformity.

Request product cost

Benefits/Capabilities

Aggressive substance resistance
Operation and transportation safety
Minimum “dead” volume
Containers with other parameters (volume, working pressure, temperature, connection type) on request

Technical specifications

Model	Volume, ml	Pressure, MPa	t °C	Weight, kg	Length, mm	Diameter, mm	Material	Connection type
KB25.200	200	25	150	4,0	239	64	SS316 / HC276	1/8″ FNPT
KB40.500	500	40	150	18,0	382	120	SS316 / HC276	1/8″ FNPT
KB40.700	700	40	150	20,0	453	120	SS316 / HC276	1/8″ FNPT
KB40.1000	1000	40	150	23,0	557	120	SS316 / HC276	1/8″ FNPT
KB70.200	200	70	150	12,6	249	130	SS316 / HC276	1/8″ FNPT
KB70.350	350	70	150	22,0	377	130	SS316 / HC276	1/8″ FNPT
KB70.500	500	70	150	24,7	453	130	SS316 / HC276	1/8″ FNPT
