Piston containers for fluid/gas samples

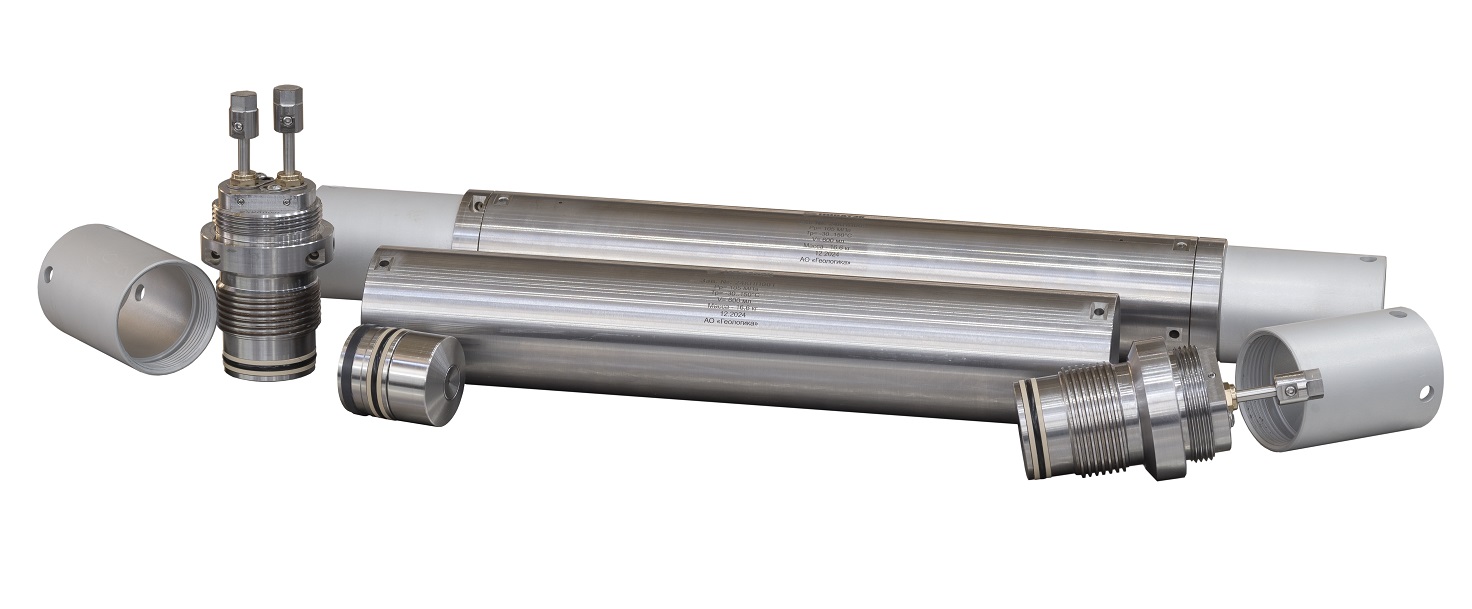

Piston containers are designed for oil and gas samples transportation and storage. Piston containers can be used in laboratory tests for pore fluids storage, preparation and delivery.
Piston containers can be equipped with a magnetic level system that allows user to accurately determine the current liquid level.

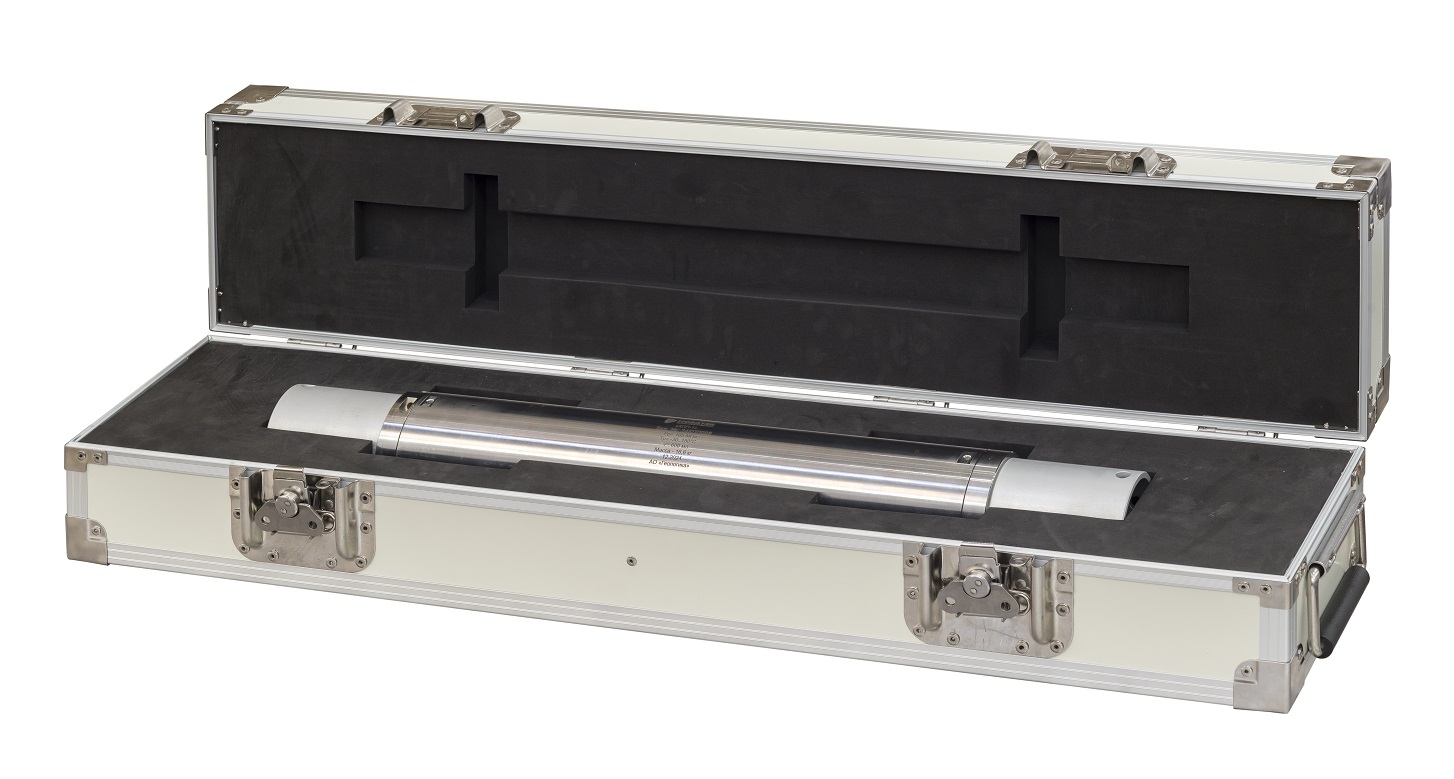

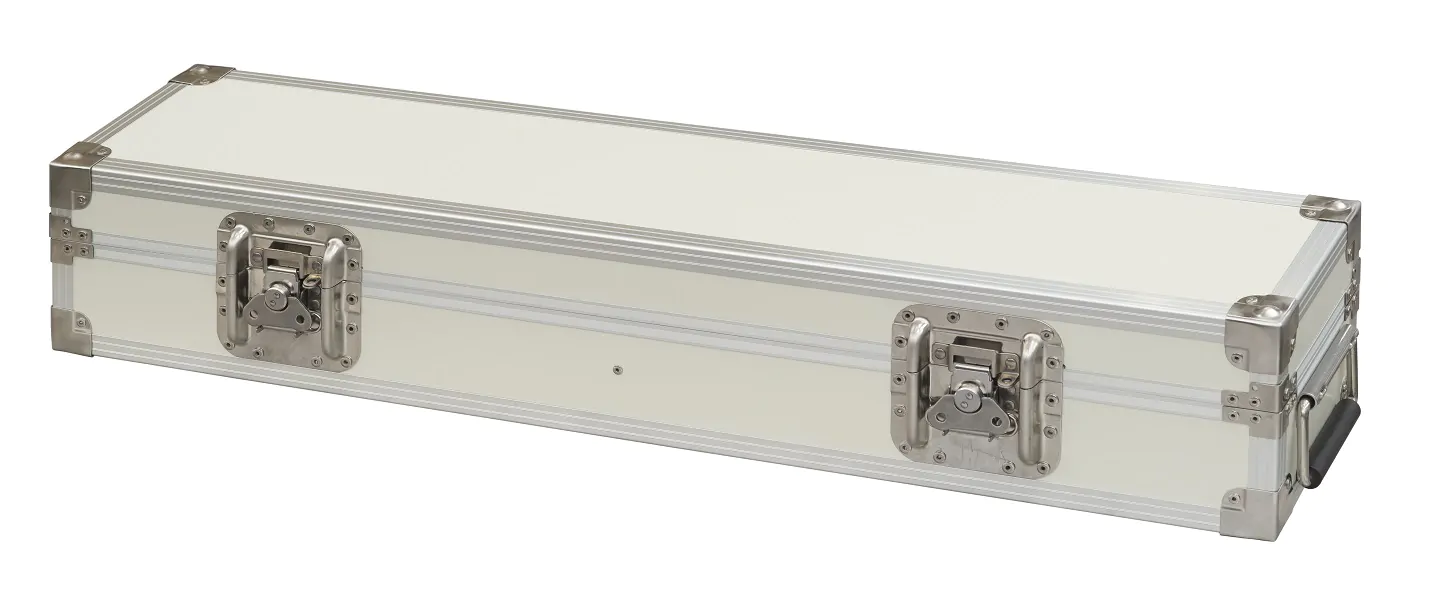

Piston container can be equipped with needle valves installed on both ends of the container and having protective arcs against damage during transportation. Transportation case also can be included.

Piston containers can be made of corrosion-resistant steel (SS316 or analogue) or acid-resistant nickel alloy (C-276 HASTELLOY or analogue). Containers are designed for temperatures up to 150 ° C.

Piston containers are provided by EAEC N RU D-RU.AD5.В.03244 declaration of conformity.

Request product cost
Benefits/Capabilities
  • Aggressive substance resistance
  • Operation and transportation safety
  • Minimum “dead” volume
  • Magnet integrated in the piston allows user to accurately determine fluid level
  • Containers with other parameters (volume, working pressure, temperature, connection type) on request
Technical specifications
Model Volume, ml Pressure, MPa t °C Weight, kg Length, mm Diameter, mm Material Connection type
KP40.500 500 40 150 18,5 382 120 stainless steel / acid resistant alloy 1/8″ FNPT
KP40.700 700 40 150 20,5 453 120 stainless steel / acid resistant alloy 1/8″ FNPT
KP40.1000 1000 40 150 23,5 557 120 stainless steel / acid resistant alloy 1/8″ FNPT
KP40.2000 2000 40 150 46,5 673 150 stainless steel / acid resistant alloy 1/8″ FNPT
KP40.3000 3000 40 150 47,1 742 155 stainless steel 1/8″ FNPT
KP40.400 4000 40 150 49,4 873 155 stainless steel 1/8″ FNPT
KP40.5000 5000 40 150 51,9 1004 155 stainless steel 1/8″ FNPT
KP70.350 350 70 150 22,5 377 130 stainless steel / acid resistant alloy 1/8″ FNPT
KP70.500 500 70 150 25,2 453 130 stainless steel / acid resistant alloy 1/8″ FNPT
KP70.700 700 70 150 28,8 555 130 stainless steel / acid resistant alloy 1/8″ FNPT
KP70.1000 1000 70 150 34,2 708 130 stainless steel / acid resistant alloy 1/8″ FNPT
