Linear displacement sensor (LVDT sensor)

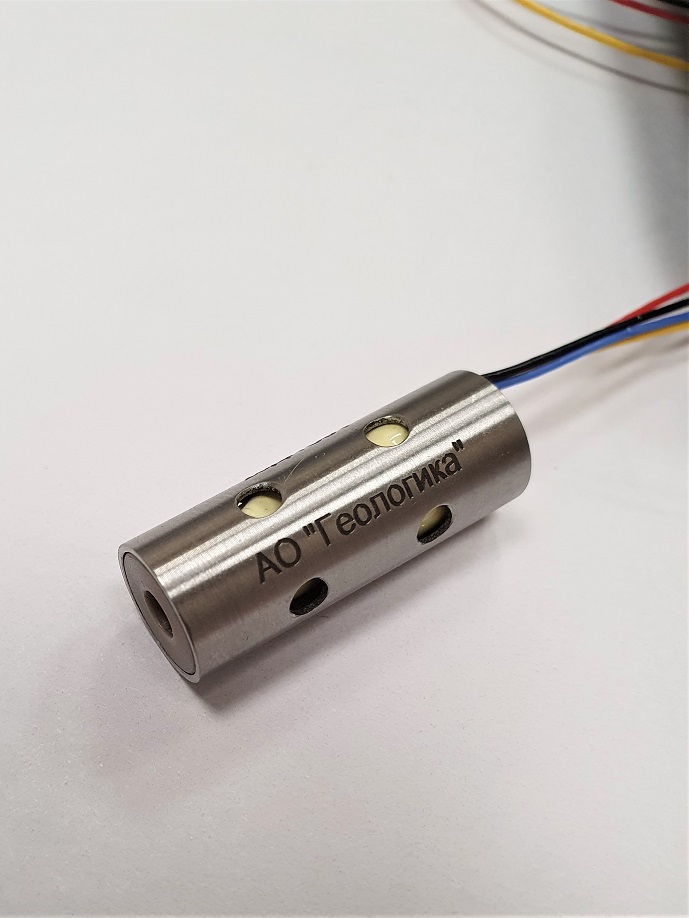

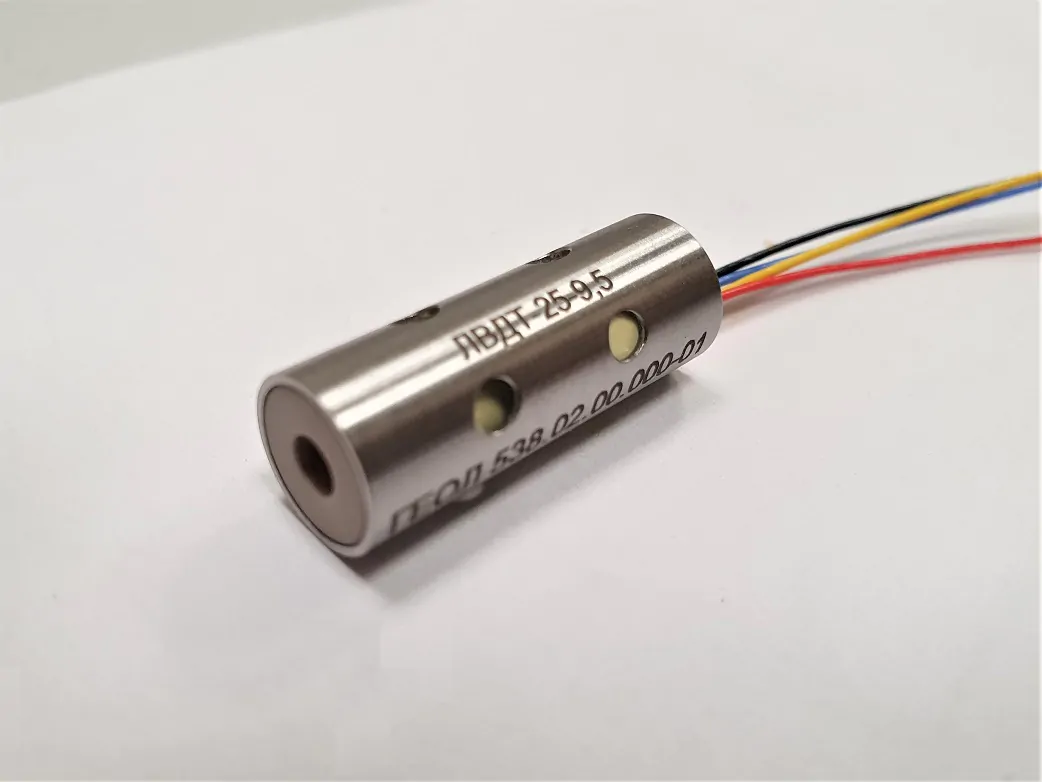

Linear differential transformer with variable gain. LVDT sensors are electromechanical transducers that convert the linear motion of an object to which they are mechanically connected into an electrical signal. HPHT sensors are designed to operate under overpressure and elevated temperatures. The sensors are fully compatible with rock mechanical properties testing equipment. The product complies with technical specifications: GEOL.410670.001TU. They can be used in various analytical equipment.

Request product cost

Benefits/Capabilities

Operation at excess pressures up to 140 MPa
Operation in hydraulic oil
Operation at temperatures up to +150°C.

Technical specifications

Model	LVDT-19-9.5	LVDT-25-9.5	LVDT-44-9.5	LVDT-84-9.5
Nominal range, mm	±1.25	±2.5	±6.25	±12.5
Sensitivity, mV/V/mm	60	60	80	80
Primary winding resistance, Ohm	85	85	240	240
Housing length, mm	19.2	25.4	44.5	83.8
Outer diameter, mm	9.5	9.5	9.5	9.5
Inner hole diameter, mm	3.2	3.2	3.2	3.2
Stem length, mm	16	16	28.6	50.8
Stem diameter, mm	2.8
Stem thread type	М2
Length of connecting wires, mm	350
Operating temperature range, °	-20…150
Wet environments	Mineral and synthetic oils
